Year of manufacture 2002
Working dimension X 3550
Working dimension Y 1355
Working dimension Z 100
Number of routing spindles 1
Main motor power kW 12
Rotation speed max rpm 24000
Torque support 1
Rotational axes C-axis
Tool clamping system HSK-F63
Tool changing positions 8
Borer vertical 12
Horizontal drills in X 4
Horizontal drills in Y 2
Saw aggregate fix in X-direction
Cantilever machine 1

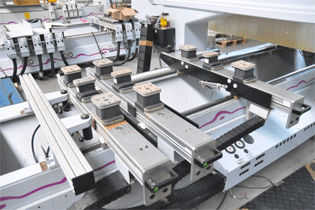

Machine table Pod and rail table
Number of table bars 6
Positioning aid 1
Vacuum pump 1
Capacity vacuum pump m³/h 100
Safety device Shut-off mat
CE-mark 1
Required space lxwxh 6380x3900x2400
Weight kg 5150
Availability Warehouse D-01665 Klipphausen
Operating status checking/ setup in progress
